Validate and Deploy Resources

Deploy the Resources

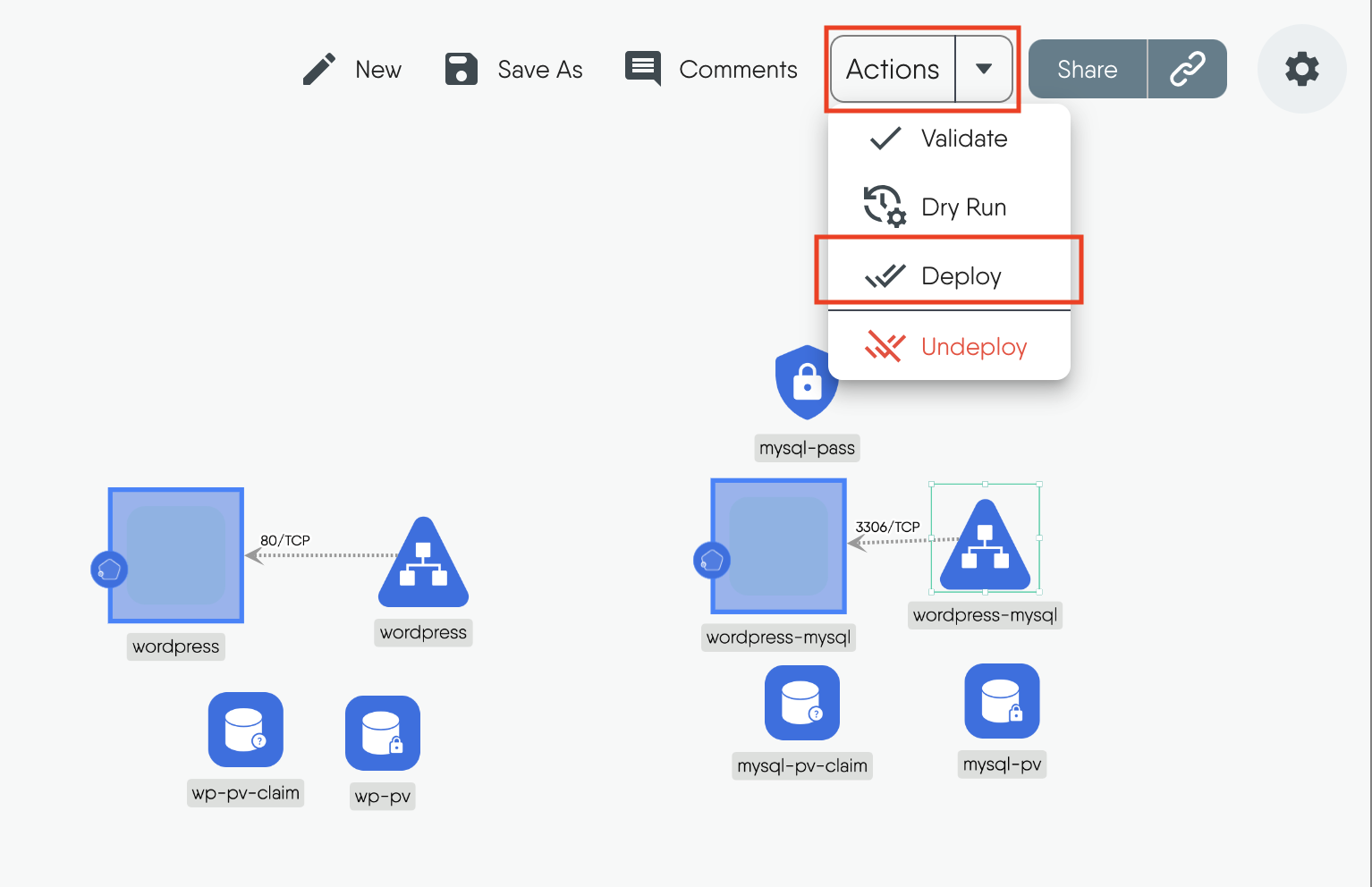

1. Click Actions in the top right corner and click on Deploy.

Figure: Actions dropdown menu

2. The design will be validated to make sure there are no errors.

Figure: Validate design

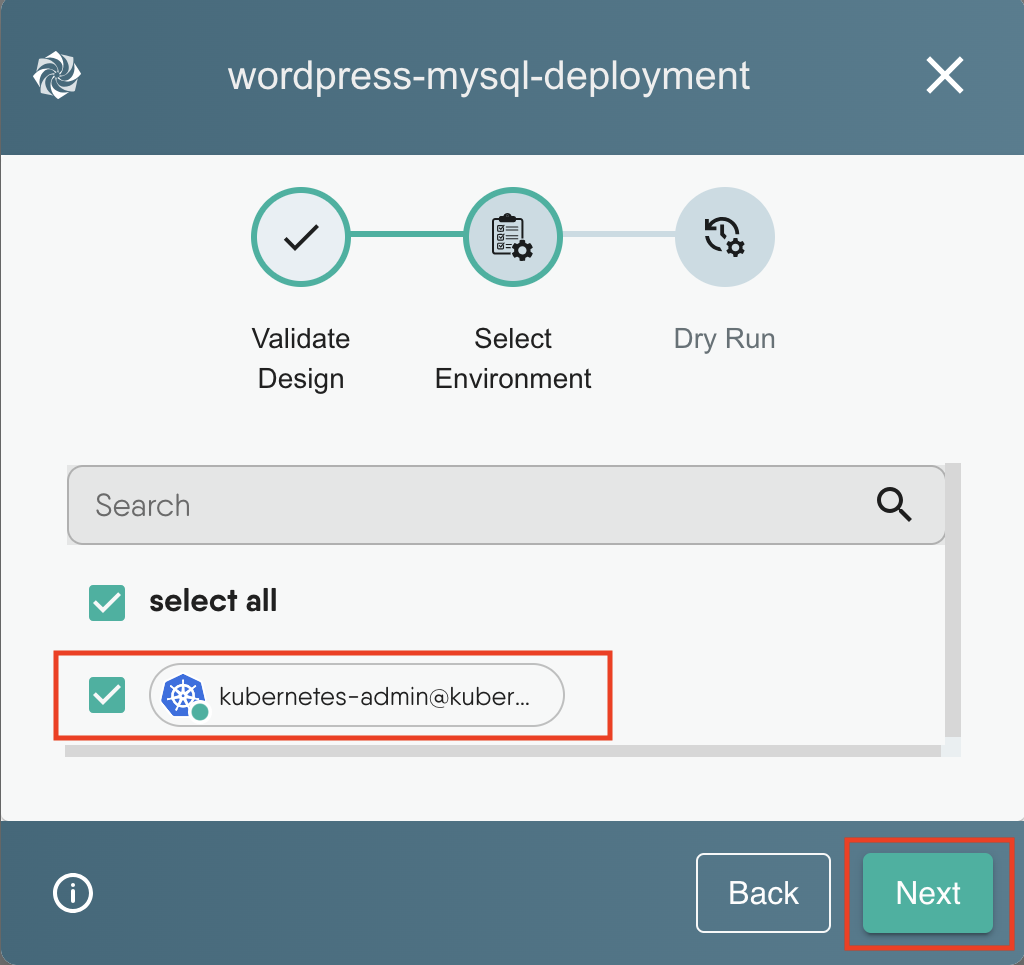

3. Choose the Kubernetes cluster you want to deploy to.

Figure: Choose deployment Environment

Note: The Meshery Playground is connected to live Kubernetes cluster(s) and allows users full control over these clusters but you can also have the option to add your own Kubernetes cluster to the Playground.

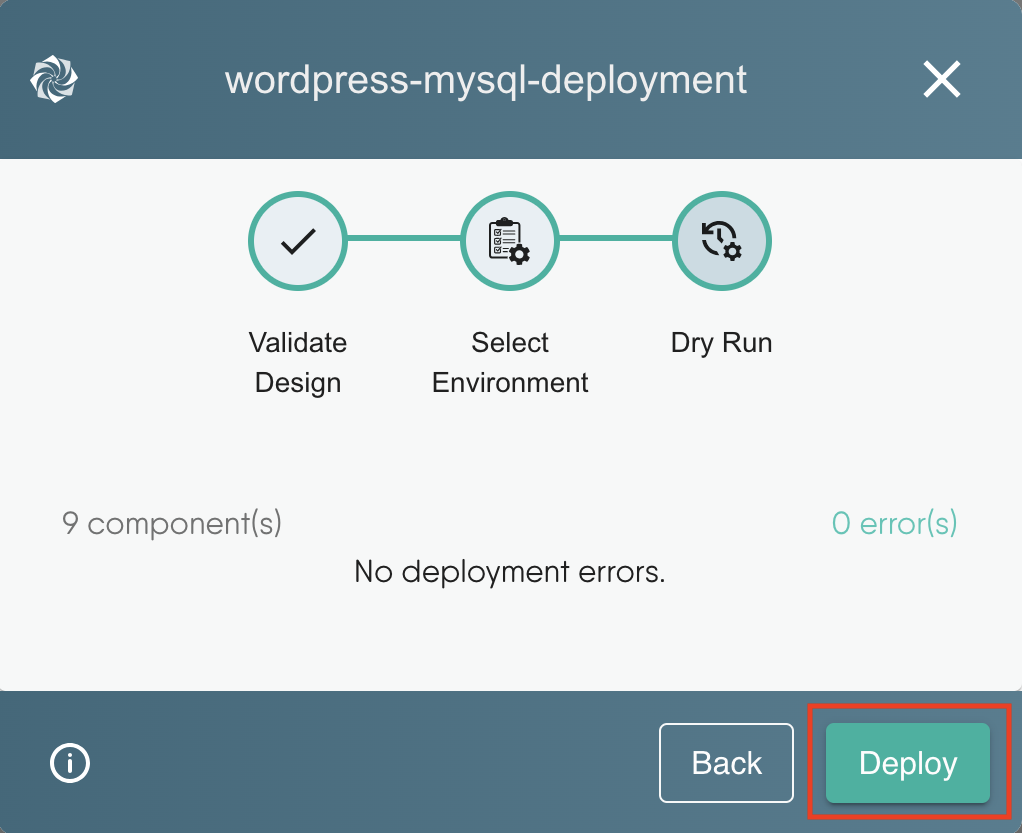

4. Finally click Deploy to deploy the application to the cluster.

Figure: Deploy resources

5. To check the status of your deployment, click on the notification icon on the top right corner. You can click on Open In visualizer to navigate to the Visualize section or follow the steps below.

Figure: Deploy resources
